Mounting Power Supply To Base |
The base plate of the amplifier was made from a disguarded
piece of shelving cut to size, which once was a desk top in
the shack. The shelving had already been stain, so it look

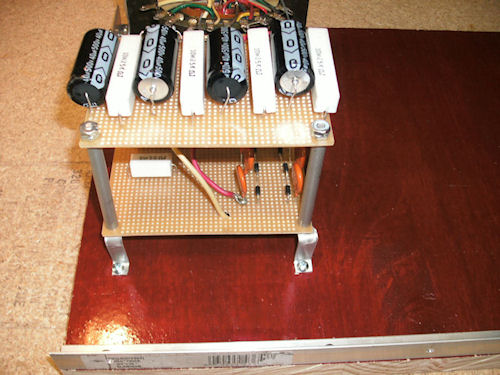

pretty good to me. As you will see in the photos to follow
the transformer, rectifier and filter capacitor board are
mounted in place. Filament choke was wound on a 7" x 1/2 OD
ferrite rod with # 14 gauge house wiring using the white and
black wire. Then wrap with shrink tubing and mounted in place.
The plate choke was purchase brand new off of ebay and was the
same one call for in the schematic. Tube socket mounted. To
the right of the tube socket is the bias supply circuit which
measure 19v. A fuse was added which is also mounted on the
rear plate along with two so239 connectors and RCA connector
for keying relay.
Below you'll fine a image gallery of pictures of the power
supply. Click on the thumb nail picture on the right to scroll through the
pictures. |
|
|
|
|
