I will be modifying this capacitor plate and adding the 200pf capacitor soon.
|

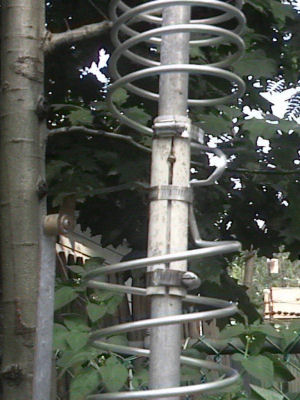

To the right if you look
closely you can see the capacitor and its bracket where it makes contact
with the upper portion of the 80 meter coil and the lower portion of the 40

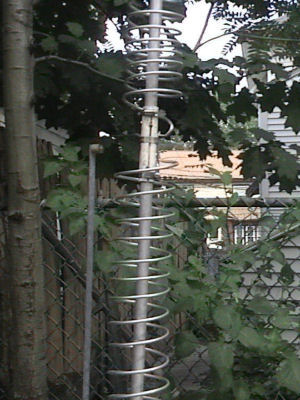

meter coil. I have included two pictures here to show the capacitor and the
bracket that is run down along the side of the 80 meter coil. And is held to
the lower 6 foot section of tubing with a hose clamp that can not been seen
in these photos. I should have taken more and better pictures. But at the
time did not think I would be creating a web page and posting my projects.
I will be modifying this capacitor plate and adding the 200pf capacitor soon. |
||
